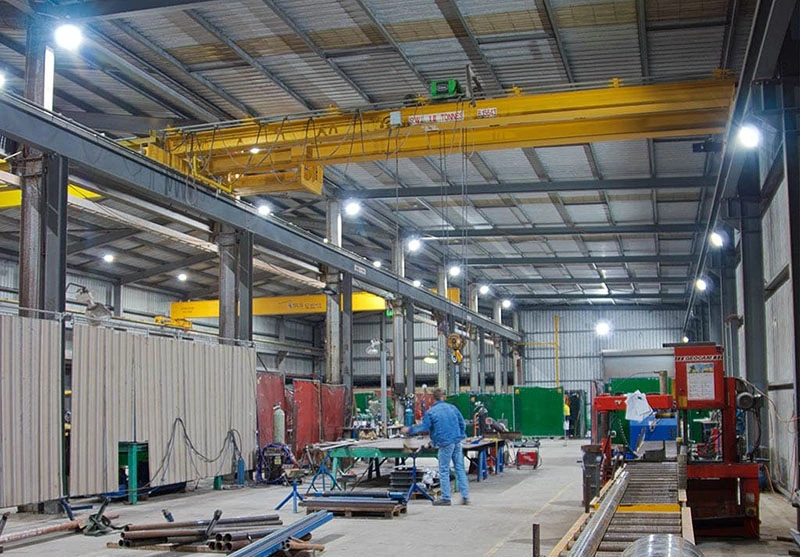

1、Introduction: From “Brighter” to “Smarter” Industrial Lighting
In previous decades, industrial lighting design was often guided by a simple rule of thumb: more light equals better working conditions. While brightness is still important, modern industrial facilities—factories, warehouses, logistics hubs and outdoor yards—demand a far more sophisticated approach. Managers now need lighting systems that deliver the right amount of light (lux) to the correct workplane, while minimizing energy consumption, reducing maintenance, and improving visual comfort and safety.
This technical article decodes the three most critical parameters in LED industrial lighting design—lumens, wattage, and beam angle—and explains how to scientifically combine them to achieve optimal lighting performance and efficiency, thereby enhancing return on investment (ROI).
2、Lumen (lm): The Core Indicator of Light Output
What is Lumen?
Lumen (lm) measures luminous flux—the total amount of visible light emitted by a source per second. It quantifies the light output independent of direction. However, lumens alone do not define the illuminance (lux) on a work surface, which depends on how those lumens are distributed and delivered to the target area.
Recommended Illuminance Standards (Reference: EN 12464-1 and industry practice)
The following table summarizes typical recommended illuminance (lux) ranges for common industrial tasks. Use applicable local or project standards to set final targets.
Application / Recommended Illuminance (Lux)
- General warehouse storage: 150–300 lux
- Loading/unloading zones: 100–200 lux
- Assembly and inspection (precision): 500–1000 lux
- General manufacturing: 300–500 lux
- Packing and shipping area: 200–300 lux
- Quality control/inspection benches: 750–1500 lux (task-specific)
- Lumen-to-Illuminance Relationship
Illuminance (E, lux) = Luminous flux (Φ, lm) × Utilization Factor (UF) × Maintenance Factor (MF) ÷ Area (m²)
- Important considerations:
- Utilization Factor (UF) depends on luminaire distribution (beam angle), room reflectances, and mounting geometry.
- Maintenance Factor (MF) accounts for lumen depreciation (LED aging), dirt accumulation, and driver degradation. Typical MF values range from 0.7 to 0.9 depending on maintenance schedules and environment.
- Installing the same lumen output at a higher mounting height will reduce lux on the workplane due to increased dispersion and potential obstructions.
Practical Example:
A 20,000 lm luminaire installed at 6 m with a moderate beam distribution might achieve average floor illuminance of 450–600 lux, depending on UF and MF. The same luminaire at 10 m could yield only 150–250 lux.
3、Wattage (W): Power Consumption ≠ Brightness
Wattage simply measures electrical power consumption. It is not a direct indicator of luminous output. The conversion efficiency—luminous efficacy (lm/W)—is the metric that connects lamp power to light output.
Luminous Efficacy and Energy Efficiency
- Luminous efficacy (lm/W) = luminous flux (lm) ÷ power (W).
- Modern industrial LEDs commonly range from 130–180 lm/W in delivered system efficacy.
- Higher efficacy reduces operational costs and heat generation per lumen.
Comparative Example:
- 100 W LED at 150 lm/W → 15,000 lm output.
- An older 250 W metal halide might produce 10,000–14,000 lm, with lower system efficacy (40–60 lm/W), and much higher maintenance.
Wattage Selection by Application and Height
- 50–100 W: Low-moderate ceiling heights (3–5 m), small workshops, corridors.
- 150–200 W: Medium-height facilities (6–9 m), general factory floors.
- 300 W and above: High-bay (10–15 m), railyards, port cranes, stadium floodlighting.
Economic Considerations (ROI)
When planning retrofits or new installations, compare **installed cost** plus **lifetime energy & maintenance cost**. Higher-efficiency LED fixtures often have higher upfront cost, but lower total cost of ownership (TCO) due to energy savings and reduced maintenance. Typical payback periods range from 1–4 years depending on operational hours and energy prices.
4、Beam Angle: Controlling Light Distribution
Definition and Principle
Beam angle indicates the spread of light emitted from the luminaire. It is usually defined by the angle within which the luminous intensity is at least 50% of the maximum. The beam angle determines whether light is focused into a narrow spot or spread broadly.
Common Beam Angle Ranges and Applications
- 15–30° (Spot/Narrow): Focused illumination, used for very high mounting heights or accenting specific zones.
- 30–60° (Narrow to Medium): High-bay areas, aisle illumination in warehouses.
- 60–90° (Medium to Wide): General area lighting, balance between coverage and concentration.
- 90–120°+ (Wide): Low-height installations, production lines or spaces requiring uniform illumination.
Consequences of Incorrect Beam Selection
- Overly narrow beams at low heights cause intense glare and bright spots, with dark surrounding areas.
- Overly wide beams in high spaces lead to scattered light and low lux at the target plane, requiring more fixtures or higher wattages.
Optical Components
- Lenses, reflectors and diffusers control beam shape. Secondary optics (TIR lenses, precision reflectors) help create tailored distributions (asymmetric, batwing, elliptical) that match the task plane and layout.
- Anti-glare optics and UGR (Unified Glare Rating) considerations are important in areas where visual comfort and operator safety are critical.
5、Integrating Lumen, Wattage and Beam Angle: The Design Logic
Design Formula Recap
Average Illuminance E = (Σ Φ × UF × MF) ÷ Area
Steps for Practical Design
- Define the target illuminance and uniformity (min/avg) per EN or project requirement.
- Determine area and layout constraints (racking, machines, aisles).
- Estimate UF based on beam angle, reflectances, and mounting height.
- Calculate required total lumens and select fixtures meeting the lumens at the desired lm/W.
- Validate with simulation (DIALux, AGi32) to ensure uniformity, glare limits, and emergency lighting compliance.
Design Case Studies (Representative)

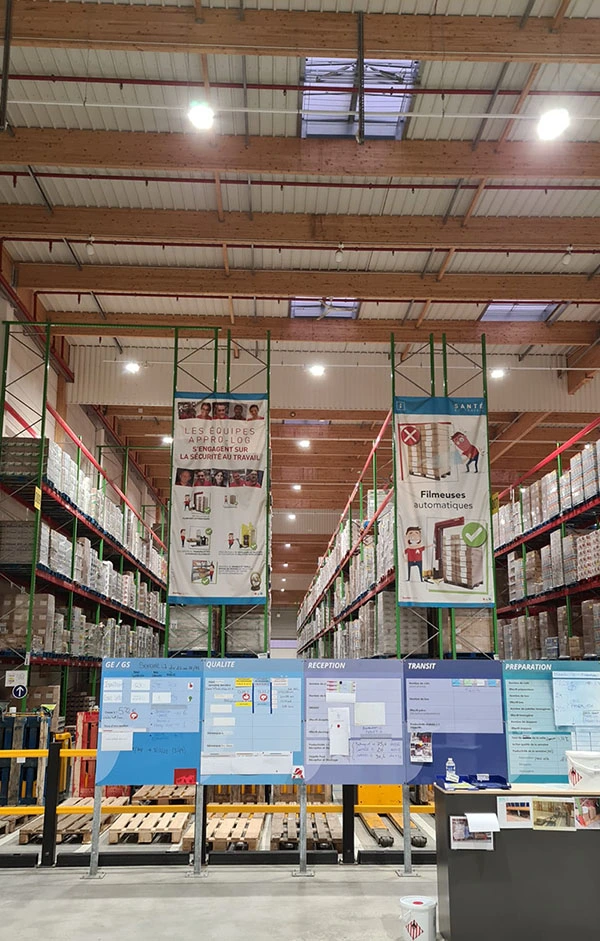

Case A: Medium-Height Warehouse (6 m)
- Requirement: 300 lux average on floor, U0 ≥ 0.4 (uniformity)
- Selected fixture: 100 W LED high bay, 150 lm/W → 15,000 lm each, beam 90°
- Layout: Grid spacing 6 m × 8 m, calculated UF 0.6, MF 0.85
- Result: Average illuminance ≈ (15,000 × number_of_fixtures × 0.6 × 0.85) ÷ area → Achieves target with ~X fixtures (detailed simulation required).
Case B: High-Height Logistics Center (12 m)
- Requirement: 250 lux average on floor for sorting operations
- Selected fixture: 200 W LED high bay, 150 lm/W → 30,000 lm each, beam 60°
- Narrower beam increases UF in high-mount scenarios; fewer fixtures needed than wide-beam alternatives.
6、Key Performance Indicators and Specification Checklist
When evaluating LED industrial luminaires for European projects, ensure the following minimum specs are met:
- Luminous Efficacy (system): ≥ 130–150 lm/W for new installations (≥150 recommended for energy-sensitive projects).
- Power Factor (PF): ≥ 0.90 (PF ≥ 0.95 preferred).
- THD (Total Harmonic Distortion): ≤ 15%.
- Color Rendering Index (CRI): ≥ 70 for general tasks; CRI ≥ 80 for inspection or color-critical tasks.
- Correlated Color Temperature (CCT): 4000 K is common for industrial; 3000 K for warmer spaces; 5000 K for high-contrast tasks.
- Lifetime: L70 ≥ 50,000 hours (LM-80/LM-79 test references).
- IP Rating: IP65 or higher for dusty/wet environments.
- IK Rating: IK08 or higher for impact resistance where required.
- Certifications: CE, RoHS, ENEC (or local equivalents), and driver safety standards.
7、Thermal Management, Driver Quality and Reliability
Why Thermal Design Matters
LED performance and lifetime are tightly coupled with junction temperature (Tj). Effective heat dissipation preserves lumen maintenance and reduces light decay.
Good thermal design includes:
- Extruded aluminum heat sinks with increased surface area and optimized fin geometry.
- Thermal interface materials and direct-mounting methods that reduce thermal resistance.
- Consideration for ambient temperature: many fixtures are rated for Ta ≤ 40 °C; higher ambient installations require derating or special thermal solutions.
Driver and Electronics
- Use high-quality constant-current drivers with surge protection, wide input voltage range, and active power factor correction (PFC).
- Branded driver suppliers (e.g., Mean Well, Inventronics) reduce failure risks compared to generic drivers.
- Over-temperature protection and short-circuit protection are recommended for industrial reliability.
8、Common Problems and How to Avoid Them
Problem: Rapid Lumen Depreciation (Light Decay)
Causes: Poor thermal design, low-quality chips, subpar drivers.
Solution: Use LM-80 tested LEDs, adequate heat sinks, and select drivers with proven lifetime data.
Problem: Excessive Glare and Visual Discomfort
Causes: Overly high lumen density per fixture, wrong beam angle, lack of anti-glare optics.
Solution: Employ diffusers, anti-glare lenses, or increase fixture spacing and use lower wattage with more fixtures for even distribution.
Problem: Frequent Driver Failures
Causes: Low-quality drivers, voltage spikes, inadequate surge protection.
Solution: Choose drivers with ST and surge protection ratings; design for input fluctuations common in industrial plants.
Problem: Dust and Moisture Ingress
Causes: Inadequate sealing or low IP rating.
Solution: For dusty or wet environments choose IP66/IP67 fixtures as required; include gaskets and sealed connectors.
9、Advanced Considerations: Controls, Dimming and Smart Integration
Smart lighting greatly enhances energy optimization:
- Daylight harvesting (light sensors) reduces output when adequate natural light exists.
- Occupancy-based dimming saves energy in seldom-used areas.
- Zoning and task-tunable lighting allow different areas to operate at distinct light levels, reducing total energy consumption.
Protocols and Interoperability
- DALI-2, KNX, and wired/wireless protocols (DALI, Zigbee, Bluetooth Mesh) are commonly used in European projects.
- Ensure compatibility with building management systems (BMS) and energy reporting platforms for grant qualification and compliance.
10、Practical Selection and Procurement Advice for European Projects
- Ask suppliers for LM-80, LM-79 and driver test reports. Request photometric files (IES/LM-63) for simulation.
- Request on-site photometric verification or a pilot installation for large projects.
- Consider total cost of ownership (TCO) – include installation, energy, maintenance, and replacement costs in procurement comparisons.
- Ensure compliance with local regulations and safety standards (CE marking, EMC, and applicable EN standards).
11、Return on Investment (ROI) Example
Example ROI Calculation for Retrofit:
- Factory A: 300 fixtures of 250 W metal halide (avg 12 hours/day)
- Replace with 150 W LED at 150 lm/W producing equal or better lux
- Electricity price: €0.20/kWh
- Annual operational hours: 4,000 h
Annual energy saving per fixture:
(250 W - 150 W) × 4,000 h = 400,000 Wh = 400 kWh
Annual cost saving per fixture:
400 kWh × €0.20 = €80
Total annual saving for 300 fixtures:
€80 × 300 = €24,000
Assuming incremental fixture cost and installation yields a payback period of 2–3 years depending on incentives and energy tariffs
12、Conclusion: Scientific Light for Productive Spaces
Selecting the correct combination of lumen, wattage and beam angle is essential for creating energy-efficient, safe and productive industrial environments. Shenzhen Unicorn Lighting Co., Ltd. emphasizes evidence-based selection—combining simulation, high-quality components, and field verification—to ensure lighting investments deliver expected returns.
If you are planning a retrofit or a new industrial lighting project in Europe and would like a technical consultation, photometric simulation (DIALux/IES), or a custom proposal, please contact Shenzhen Unicorn Lighting Co., Ltd. Our engineering team offers design support, project-specific product recommendations, and on-site commissioning services to ensure your lighting performs as intended.
